Product Summary
The TSOP39238CZ1 is miniaturized receiver for infrared remote control systems. PIN diode and preamplifier are assembled on lead frame, the epoxy package is designed as IR filter. The demodulated output signal of TSOP39238CZ1 can directly be decoded by a microprocessor. The TSOP39238CZ1 is the standard IR remote control receiver series, supporting all major transmission codes.
Parametrics
TSOP39238CZ1 absolute maximum ratings: (1)Supply Voltage, VS: -0.3 to +6.0V; (2)Supply Current, IS: 3mA; (3)Output Voltage, VO: -0.3 to (VS+0.3)V; (4)Output Current, IO: 10mA; (5)Junction Temperature, Tj: 100℃; (6)Storage Temperature Range, Tstg: -25 to +85℃; (7)Operating Temperature Range, Tamb: -25 to +85℃; (8)Power Consumption (Tamb ≤ 85℃), Ptot: 30mW; (9)Soldering Temperature t ≤ 10 s, 1 mm from case, Tsd: 260℃.
Features
TSOP39238CZ1 features: (1)Photo detector and preamplifier in one package; (2)Build in filter for carrier frequency of IR signal; (3)Shielding against electrical field disturbance; (4)TTL and CMOS compatibility; (5)Output active low; (6)Low power consumption; (7)Supply voltage range: 2.7V to 5.5V; (8)Lead (Pb)-free component; (9)Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC.

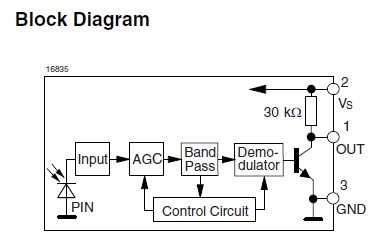

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TSOP39238CZ1 |
Vishay |
Infrared Receivers 2.5 V to 5.5 V 38kHz |
Data Sheet |
|
|
|||||||||||||
