Product Summary

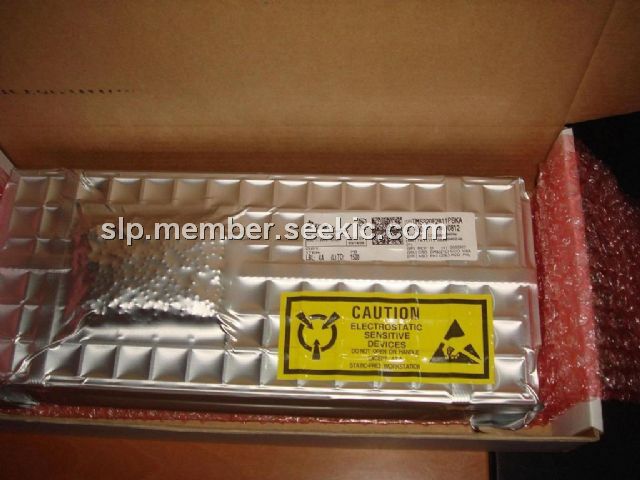

The TMS320F2811PBKA is a Digital Signal Processor.
Parametrics
TMS320F2811PBKA absolute maximum ratings: (1)Supply voltage range (VDDIO, VDD3VFL, VDDA1, VDDA2, VDDAIO, and AVDDREFBG):–0.3 V to 4.6 V; (2)Supply voltage range (VDD, VDD1):–0.5 V to 2.5 V; (3)Input voltage range, VIN:–0.3 V to 4.6 V; (4)Output voltage range, VO:–0.3 V to 4.6 V; (5)Input clamp current, IIK (VIN < 0 or VIN > VDDIO):±20 mA; (6)Output clamp current, IOK (VO < 0 or VO > VDDIO):±20 mA; (7)Operating ambient temperature ranges, TA:A version (GHH, ZHH, PGF, PBK):–40℃ to 85℃, S version (GHH, ZHH, PGF, PBK):–40℃ to 125℃，Q version (PGF, PBK):–40℃ to 125℃; (8)Junction temperature range, TJ:–40℃ to 150℃; (9)Storage temperature range, Tstg:–65℃ to 150℃.
Features
TMS320F2811PBKA features: (1)High-Performance Static CMOS Technology; (2)16 x 16 and 32 x 32 MAC Operations; (3)16 x 16 Dual MAC; (4)Harvard Bus Architecture; (5)Atomic Operations; (6)Fast Interrupt Response and Processing; (7)Unified Memory Programming Model; (8)4M Linear Program/Data Address Reach; (9)Code-Efficient (in C/C++ and Assembly); (10)Flash Devices: Up to 128K x 16 Flash (Four 8K x 16 and Six 16K x 16 Sectors); (11)ROM Devices: Up to 128K x 16 ROM; (12)1K x 16 OTP ROM; (13)L0 and L1: 2 Blocks of 4K x 16 Each Single-Access RAM (SARAM); (14)H0: 1 Block of 8K x 16 SARAM; (15)M0 and M1: 2 Blocks of 1K x 16 Each SARAM; (16)Over 1M x 16 Total Memory; (17)Programmable Wait States; (18)Programmable Read/Write Strobe Timing; (19)Three Individual Chip Selects; (20)2 x 8 Channel Input Multiplexer; (21)Two Sample-and-Hold; (22)Single/Simultaneous Conversions; (23)Fast Conversion Rate: 80 ns/12.5 MSPS.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TMS320F2811PBKA |
Texas Instruments |
Digital Signal Processors & Controllers (DSP, DSC) 32-Bit Digital Sig Controller w/Flash |
Data Sheet |
|
|
||||||||||||
