Product Summary

The PCM1808PWR is a high-performance, low-cost, single-chip, stereo analog-to-digital converter with single-ended analog voltage input. The PCM1808PWR uses a delta-sigma modulator with 64-times oversampling and includes a digital decimation filter and high-pass filter that removes the dc component of the input signal. For various applications, the PCM1808PWR supports master and slave mode and two data formats in serial audio interface.

Parametrics

PCM1808PWR absolute maximum ratings: (1)Analog supply voltage, VCC: –0.3V to 6.5V; (2)Digital supply voltage, VDD: –0.3V to 4V; (3)Ground voltage differences, AGND, DGND: ±0.1V; (4)Digital input voltage, LRCK, BCK, DOUT: –0.3V to (VDD+0.3V)<4V; (5)Digital input voltage, SCKI, MD0, MD1, FMT: –0.3V to 6.5V; (6)Analog input voltage, VINL, VINR, VREF: –0.3V to (VCC+0.3 V)<6.5V; (7)Input current (any pins except supplies): ±10 mA; (8)Ambient temperature under bias, TA: –40℃ to 125℃; (9)Storage temperature, Tstg: –55℃ to 150℃; (10)Junction temperature, TJ: 150℃; (11)Lead temperature (soldering): 260℃, 5 s; (12)Package temperature (reflow, peak): 260℃.

Features

PCM1808PWR features: (1)24-Bit Delta-Sigma Stereo A/D Converter; (2)Single-Ended Voltage Input: 3 Vp-p; (3)Oversampling Decimation Filter; (4)Flexible PCM Audio Interface; (5)Power Down and Reset by Halting System Clock; (6)Analog Antialias LPF Included.

Diagrams

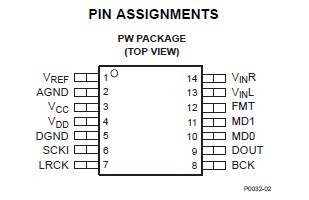

PCM1808PWR PIN ASSIGNMENTS
