Product Summary
The M3062LFGPGP#U3C single-chip microcomputer is built using the high performance silicon gate CMOS process using a M16C/60 Series CPU core and are packaged in a 80-pin, 100-pin and 128-pin plastic molded QFP. The single-chip microcomputer of the M3062LFGPGP#U3C operate using sophisticated instructions featuring a high level of instruction efficiency. With 1M bytes of address space, they are capable of executing instructions at high speed. In addition, this microcomputer of the M3062LFGPGP#U3C contains a multiplier and DMAC which combined with fast instruction processing capability, makes it suitable for control of various OA, communication, and industrial equipment which requires highspeed arithmetic/logic operations.
Parametrics
M3062LFGPGP#U3C absolute maximum ratings: (1)VCC1, VCC2 Supply Voltage VCC1=AVCC .0.3 to 6.5 V; (2)VCC2 Supply Voltage VCC2 -0.3 to VCC1+0.1 V; (3)AVCC Analog Supply Voltage VCC1=AVCC .0.3 to 6.5 V; (4)Pd Power Dissipation -40℃<Topr≤85℃ 300 mW; (5)When the Microcomputer is Operating -20 to 85 / -40 to 85 ℃; (6)Tstg Storage Temperature -65 to 150 ℃.
Features
M3062LFGPGP#U3C features: (1)Resolution 8 Bits max; (2)Absolute Accuracy 1.0 % max; (3)tSU Setup Time 3 μs max; (4)RO Output Resistance 4 10 20 kΩ max; (5)IVREF Reference Power Supply Input Current 1.5 mA max.

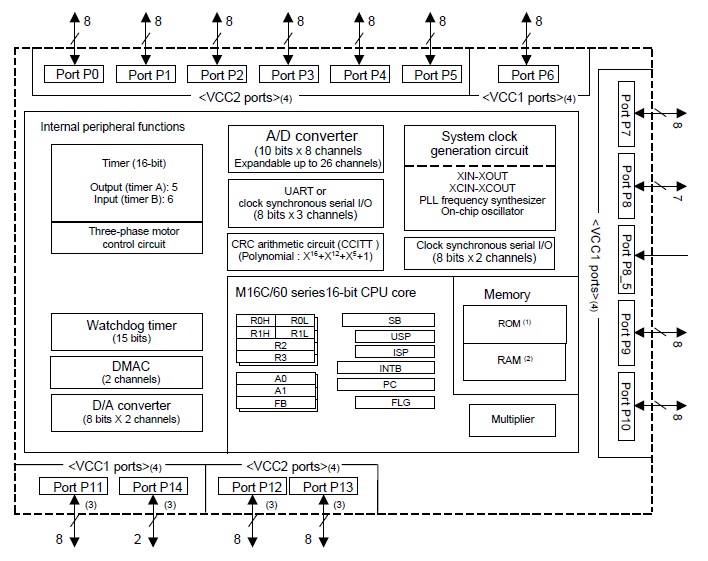

Diagrams
